Unique form and advanced technology
When uniqueness meets innovation. Pillar is a suspended fireplace based on BEV® technology. Its clean design makes it the perfect centerpiece in private residences, hotel lobbies, and restaurant lounges. Valued by architects around the world, Pillar combines fully automatic operation, an innovative electronic system and extensive customization options. Enriched with Child Lock and Shut-Off Timer, Pillar provides safety and peace of mind.
With BEV® technology and integrated safety sensors, Pillar is an eco-friendly fireplace designed to be an intuitive, safe and suitable solution for indoor use. The height of the upper tube can be tailored to suit any project, making Pillar a decorative and functional element of any space. Its unique, star-shaped burner delivers a memorable visual experience.
- BEV® (Burning Ethanol Vapours) Technology
- Bioethanol – renewable fuel and clean burning
- Comet star-shaped burner
- No chimney = no smoke and no odor
BEV® technology in a star-shaped burner
The combustion process is fully automated and managed by a built-in microprocessor. Ethanol is kept in a sealed tank, separate from the flame.
When the fireplace is started, only the exact amount of fuel needed is transferred to the vapor generator, where it is gently heated until it turns into vapor. This vapor is then evenly distributed and burned inside the burner, meaning the flame never touches the liquid fuel directly.
The insulated tank, cooling fans, and combustion chamber keep the ethanol temperature low and secure at all times.
Multiple sensors continuously monitor the device, sending data to the microprocessor, which oversees the entire operation.
BEV® is complemented by advanced safety sensors including a Child Lock and Shut-Off Timer ensuring both comfort and peace of mind.
Control & Operation

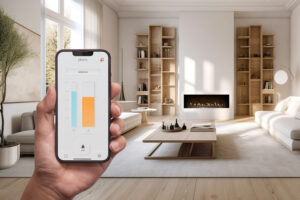

Operation of the Pillar fireplace is intuitive and effortless. You can manage the flame height and settings with a handy remote control or a dedicated mobile app, while the integrated touch display gives you direct access to all functions. This combination ensures both convenience and precision in everyday use.
Automatic refilling system
Planika pioneered the use of an automatic refilling solution in bioethanol fireplaces. With the help of a dedicated pump, the tank can be filled quickly and without effort. Simply connect the pump to the control panel, place the hose into the fuel bottle, and press the button.
The pump automatically stops once the tank reaches the right level, preventing overfilling and eliminating the risk of spills. This ensures both user safety and reliable fireplace operation.
Technical specification
|
Fuel tank capacity
|
2.32 gal
|
|
Max. burning time
|
17 hours
|
|
Max. heating input
|
22 520 BTUs/h
|
|
Min. room cubature
|
2331 ft3
|
|
Flame height regulation
|
6 stages
|
|
Type of fuel
|
bioethanol 95-96,6%
|
|
Chimney
|
not required
|
|
Air exchange rate
|
1 space volume per hour
|
|
Power supply
|
115 V
|
|
Finish
|
black powder coating
|
|
Materials
|
steel, galvanized steel, tempered glass
|
|
Application
|
for indoor use only
|

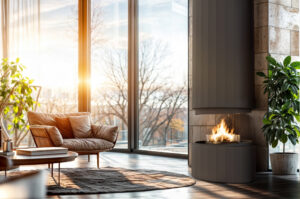

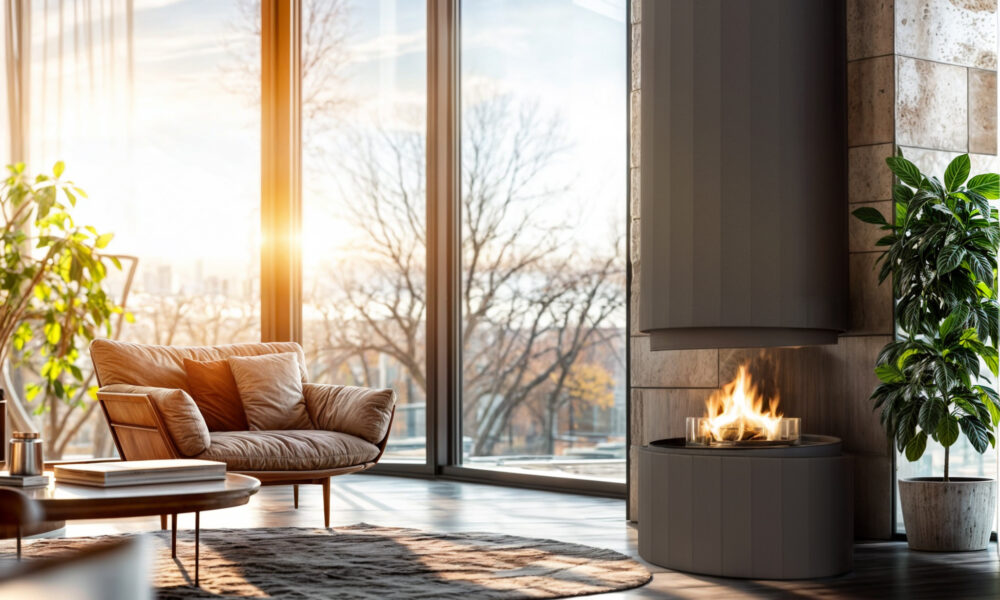

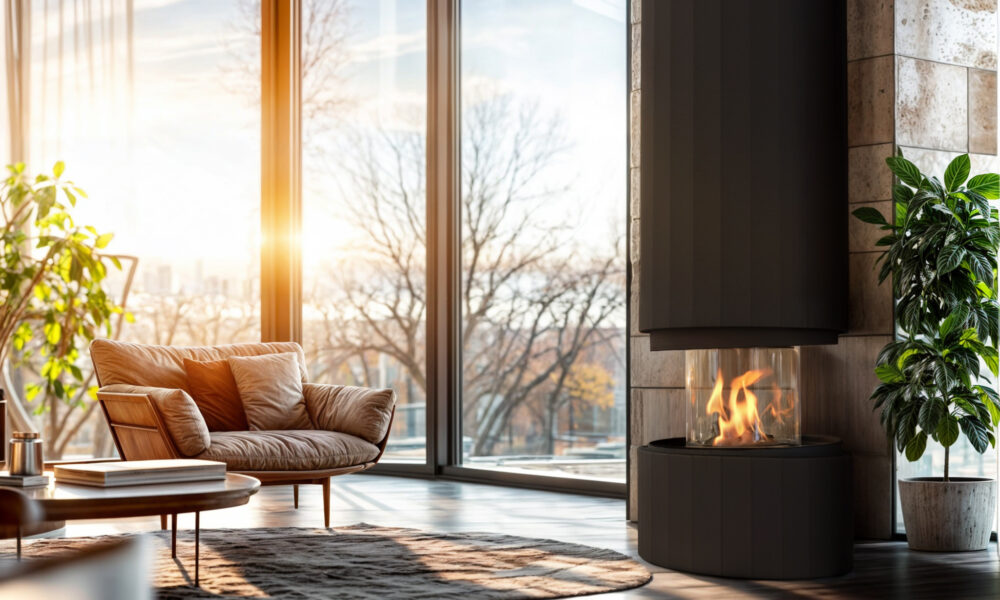

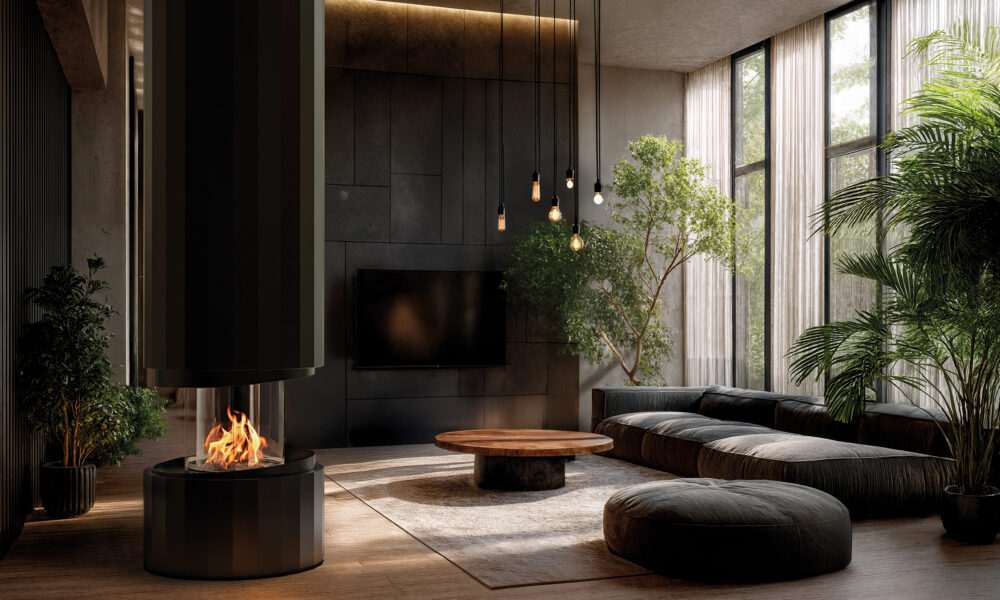

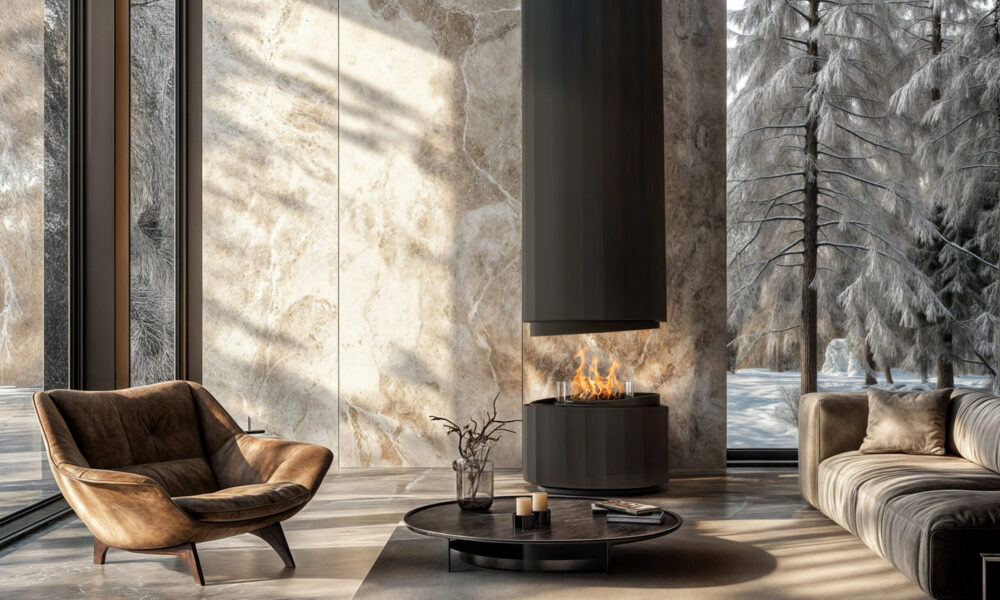

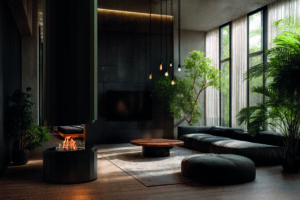

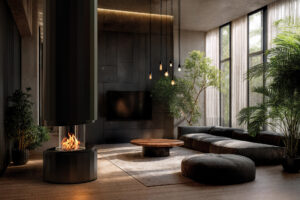

Arrangements
Optional accessories
- Smart Home System (SHS)
- Custom top finish
- Custom upper tube height
- Custom housing RAL finish
Nothing comapres to Planika and sophistication that comes with it.
- Patrick Helou Architect, PH ArchitectsIt is in fact a very original fire solution since it is hard to find an apartment where natural flame fireplace is used. It was impossible according to safety requirements. That is why modern bio fireplaces are a very good alternative.
- Elena Miroshkina Architect, Geometrix DesignPlanika fireplace does not emit any carbon monoxide. Even though it demands no chimney, it is still the focal point of the room. It gives that pure feel of the real fire.
- Tom Cornwell Owner of the Villa Escarpa, Portugal, The Oakridge Partnership LtdPlanika’s fireplace was something new for my investor and he was willing to take advantage of such opportunity.
- Aleksandra Bobrowicz-Nadolny Interior Designer, Dot.projektPortable bio fireplaces are easy to move in the case of rearrangement. Their simplicity is very useful in the modern houses. In my opinion, they have a great future.
- Hans Murman Architect, Murman ArchitekterProduct Resources
Download essential resources for integrating our products into your design. Choose from 3D models, 2D models, tech cards, and detailed manuals for seamless project planning.
Safety first
Planika fire-design products comply with rigorous building and safety regulations. Patented BEV® technology ensures clean and controlled combustion, while UL certification confirms adherence to the strictest safety standards, providing reliable protection without compromising functionality.
Temperature & fuel sensors
Monitor operating conditions and automatically shut off the fireplace if abnormal temperature or fuel levels are detected, ensuring safe operation at all times.
Seismic & spillage protection
Sensors detect vibrations, tilts, or fuel leaks, immediately triggering shutdown mechanisms to prevent accidents or damage.
Robust construction
A durable and heat-resistant build ensures long-lasting performance, maintaining the structural integrity of the fireplace under high temperatures.
Fuel retrieval system
Unused bioethanol is safely returned to the tank when the fireplace is turned off, preventing spills and enabling clean and controlled refueling.
